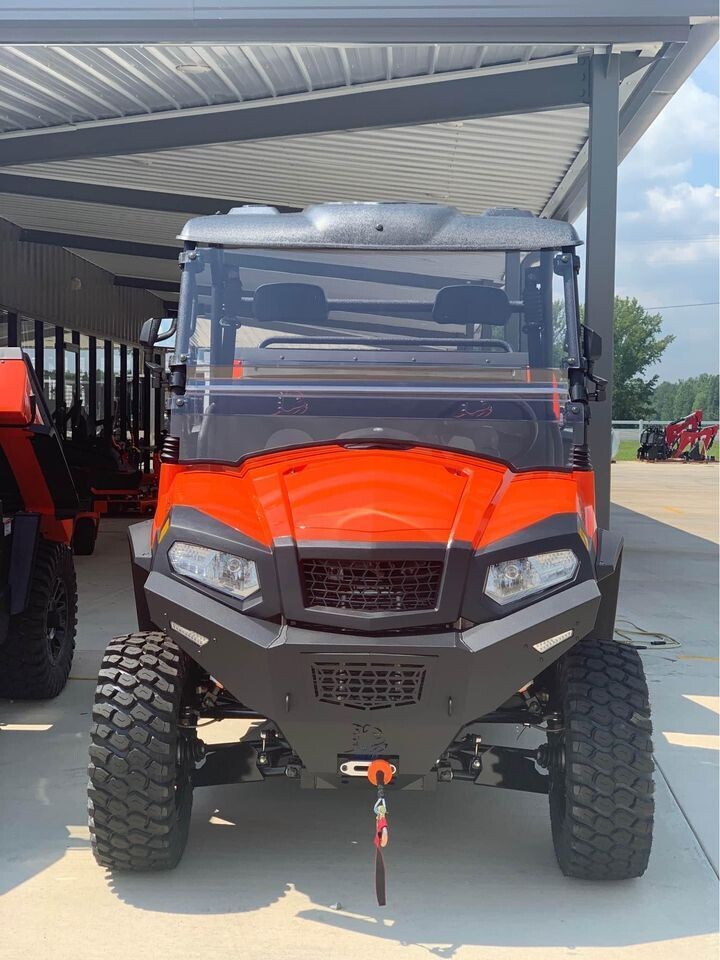

Introducing the all-new Bad Boy Bandit UTV, the ultimate off-road machine designed to redefine the meaning of superior utility. Designed for those who demand maximum performance and reliability, the Bandit Side By Side is available with either a 545cc or 735cc engine, both featuring electronic fuel injection and liquid cooling for optimal power delivery and efficiency. Available in orange and camo to fit your style and attitude.
BAD BOY BANDIT SPECIFICATIONS
ENGINE TYPE
4-STROKE SINGLE CYLINDER OHC
CYLINDER DISPLACEMENT
BANDIT 550: 545CC ; BANDIT 750: 735CC
FUEL SYSTEM
EFI
COOLING
LIQUID
TRANSMISSION
AUTOMATIC CVT
DRIVE SYSTEM
2WD / 4WD
LOCKING DIFFERENTIAL
FRONT
FINAL DRIVE
SHAFT
FRONT SUSPENSION
DUAL A-ARM
REAR SUSPENSION
DUAL A-ARM
SHOCKS
HYDRAULIC W/ NITROGEN ASSIST
FRONT / REAR BRAKES
4 WHEEL HYDRAULIC DISC
PARKING BRAKE
MECHANICAL
FRONT TIRES
26 X 9-14
REAR TIRES
26 X 11-14
WHEELS
ALUMINUM
OVERALL VEHICLE (LxWxH)
118˝ X 61˝ X 75.5˝
WHEELBASE
76.5˝
CARGO BED (LxWxH)
34˝ X 45˝ X 11˝
CARGO BED DUMP TYPE
GAS ASSIST
CARGO BED CAPACITY
500 LBS
PERSON CAPACITY
2
FUEL CAPACITY
7.5 GALLONS
EMPTY VEHICLE WEIGHT RATING (EVW)
1,638 LBS
GROSS VEHICLE WEIGHT RATING (GVW)
2,341 LBS
TOW RATING
1,200 LBS
GROUND CLEARANCE
12˝
WINCH (INCLUDED)
3,500 LBS
ROOF
YES
WINDSHIELD
2 PIECE
BRAKE LIGHTS
YES
HEADLIGHTS
HIGH / LOW BEAM
TURN SIGNALS & HORN
YES
DOORS
YES
POWER STEERING (EPS)
YES
INSTRUMENTATION
ANALOG SPEEDOMETER & TACHOMETER WITH LCD RIDER INFORMATION
